Description

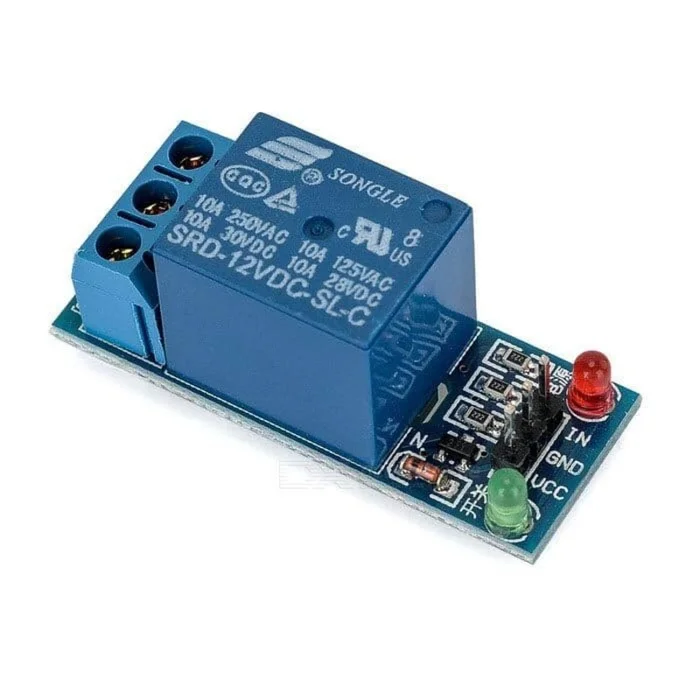

This is a single channel Relay Module SPDT (Single Pole Double Throw), relays are used to control or switch devices that use higher power than most micro-controllers such as an Arduino or Raspberry Pi can handle. This particular relay module can control typical household appliances up to 10A.

Application –

Suitable for all kind of AC/ DC appliances switching applications.

Feature:-

• Isolation groove between the control area and the load area
• Has the power and relay action instructions, pull bright, disconnect does not shine
• If the input has signal, the beginning of the common and often will have conduction
• Can be used as a microcontroller development board
• Can be used as a home appliance control
• Control DC or AC signals
• Can control AC 220V load
• Normally open and normally closed contacts
• Blue KF301 terminal accesses control line is more convenient

Specifications

• 250VAC 10A, 28VDC10A
• Indicator LEDs
• 12V control voltage
• Module size: 43mm x 17mm

Package Include:-

1 x1 Channel 12V Low Level Trigger Relay Module for Arduino
