Description

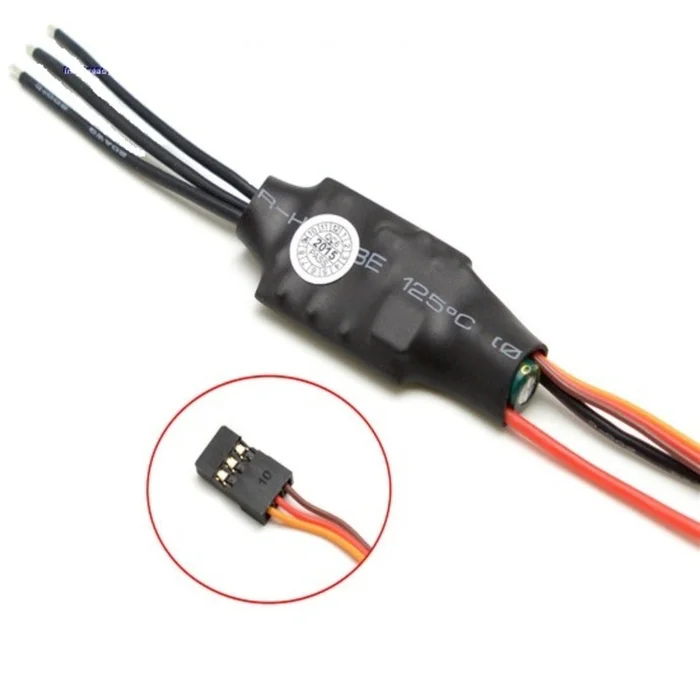

12A Series Multirotor 12A Electronic Speed Controller with 1A 5V BEC.

This 12A Brushless ESC Electronic Governor Supports 1-3S Small Axis.

Optimized to achieve the perfect driving effect with low voltage protection, over-temperature protection.

Feature:

• Designed for QAV180 210 250 ZMR250 Quadcopter.
• Low-voltage protection, over-heat protection, and self-check functions.
• Separate power supply for MCU and BEC.
• Enhancing the ESCs ability to eliminate magnetic interference.
• Parameters of the ESC can be set via a program card or transmitter.
• Throttle range can be set to compatible with different receivers.
• Equipped with built-in BEC.

Specifications:-

• Model: 12A ESC
• Burst Current (A): 15
• Constant Current (A): 12
• BEC: Yes (5V/1A)
• Suitable Lipo Batteries: 2 ~ 3S
• Color: Black
• Length (mm): 46
• Width (mm): 19
• Height (mm): 5.5
• Weight (gm): 12

Package Includes:-

1x 12A Electronic Speed Controller (ESC) with 5V 1A BEC.
