Description

Description: –

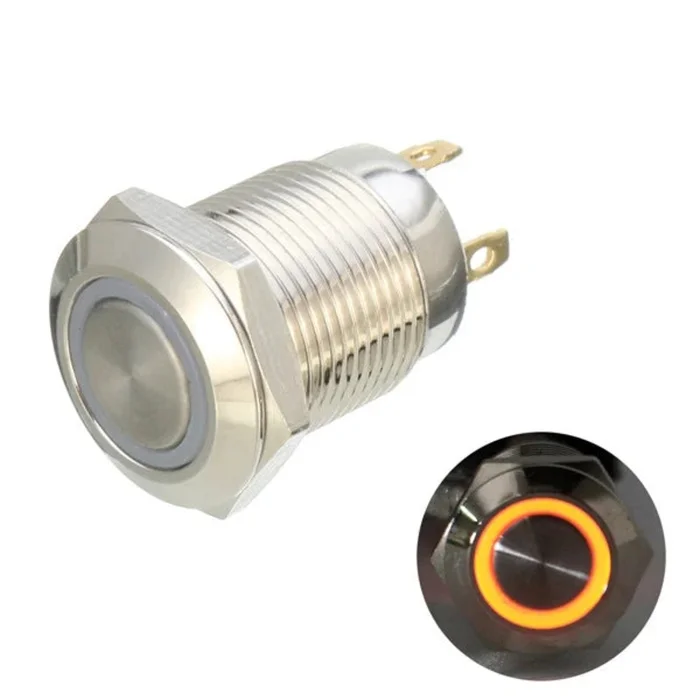

This Momentary Metal Pushbutton Switch is a perfect choice if you are in need of a heavy-duty push-button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated Yellow LED ring. It is an SPDT with 12mm threading and 1mm pitch. It gives premium look to your dashboard or control panel with a Led Light ring around the push area of the switch. These switches are available in various LED light Colours, you can choose for your application purpose

Theswitchcomes Stainless steel body with an IP67 protection rating to provide the best environmentalprotection and long operational life.This button is perfect for basic On/Off functions. Overall length (including leads) is 26mm and has small solder lugs for connection. These non-momentary Self Lock buttons are rated up to 3A and 24 VDC while the LED is rated for 5V.

Please note: In case of any Customization, before ordering contact sales team on[email protected]

Specification: –

Operating Voltage (VDC)

24

Max. Operating Current (mA)

2000

Light Color

Yellow

On/Off Function

Push to ON and Push to OFF

Switch Type

Momentary/Latching

Mounting Hole Diameter (mm)

12 mm

Contact Type

Solder Type

Contact Material

Silver Alloy

Contact Resistance

50 M

Insulation Resistance (M)

1000

Operating Temperature Range (C)

-20 to 55

Operation Force

About 3-5N

Operation Stroke

2-5mm

Body Material

Stainless Steel and Plastic

Mech. & Electrical Lifecycle

100,000

Protection Standard

IP67

Dimensions in mm (LxWxH)

26 x 14 (Length x Head Dia)

Weight (gm)

6

Shipment Weight

0.012 kg

Shipment Dimensions

8 5 2 cm

Package Includes:

1 x 12mm 24V Ring Light Metal Switch-Green Light
