Description

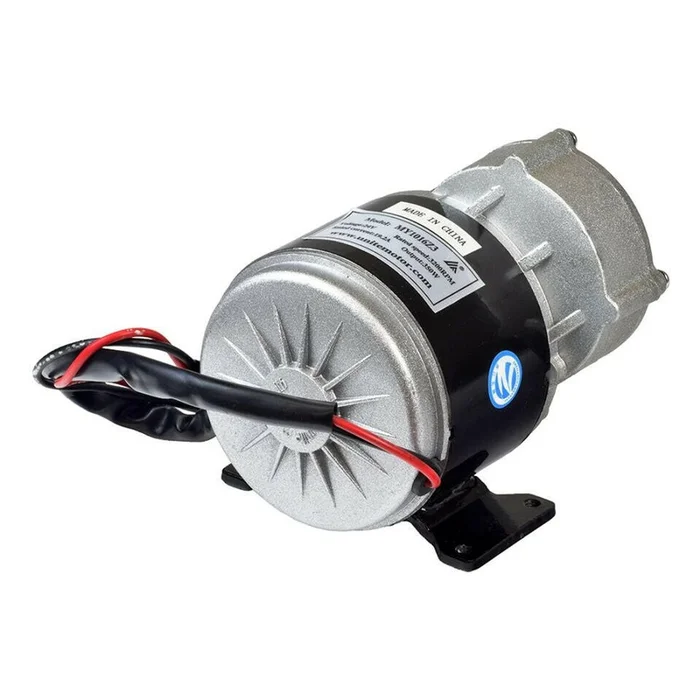

We understands the inventive mind and the thrill of creating something all your own. That is why we are proud to present the 24 volt 350 watt MY1016Z3 gear reduction motor complete with a 9 tooth 1/8″ bicycle chain sprocket.

This motor is great for those wanting to make their own custom electric vehicle, whether it’s a scooter, electric bicycle or something the world isn’t even ready for. This electric motor with gear reduction produces more low-end torque than your standard motor.

Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor’s power wires.

Application:

Perfect for use in 24V electric bikes, electric tricycles, and small electric vehicles. Ideal for DIY projects or upgrading an existing electric vehicle for smoother, more efficient performance.

Features:

• 350W Output Power: Sufficient for small to medium e-bikes and electric tricycles.

• Rated Speed of 300 RPM (after reduction): Ideal for smooth and controlled riding.

• 9-tooth Sprocket: Compatible with 1/8″ bicycle chain for easy drivetrain integration.

• Brushless Motor Design: Offers higher efficiency, durability, and low maintenance.

• Compact and Lightweight: Perfect for DIY e-bike and electric tricycle projects.

Specifications:

Feature Specification Motor Model MY1016Z3 Voltage 24V DC Output Power 350W Rated Speed (After Reduction) 300 RPM Rated Speed (Base Motor) 3200 RPM Rated Current 19.2A Sprocket 9-tooth, 1/8″ Bicycle Chain Motor Type Brushless DC Motor Efficiency High efficiency, low maintenance Applications E-bikes, electric tricycles, small electric vehicles Weight ~2.5-3 kg Cooling Air-cooled design for effective heat dissipation

Package Include:-

1x24V 350W MY1016Z3 Electric Motor for E-Bike, electric tricycle ,Electric motor
