Description

This is a 12V DC planetary motor which has a gearbox of 28mm diameter.

The planetary type gearbox of this motor has a 12:1 reduction ratio which produces 500 RPM with the torque value of around 0.5 N-m.

Planetary Gear DC Motor has the highest continuous and peak torque capability of any gearbox type.

They also feature a very compact, low-weight design in their Class.

Features :

• Brushed permanent magnet DC motor.
• Variable speed and reversible.
• Planetary Gear Box.
• Standard brush life of 2000+ hours (varies by application).

Specifications:-

• Model – TPG28M395-12K.
• Motor Type – DC Carbon Brush Motor.
• Gear Ratio – 12 : 1.
• Operating Voltage(VDC) – 12.
• Rated Current(A) – 0.750.
• Rated Base Motor RPM – 6000.
• Rated Speed(RPM) – 500.
• Rated Torque (N-m) – 0.5.
• Operating Temperature (C) – -40 C +100C.
• Opt. Relative Humidity(RH) – 20% 85% .
• Gear Material – Powder Metallurgy, Steel, POM.
• Housing Material – Metal.
• Motor Body Size (Diameter) (mm) – 28.
• Motor Length(mm) – 8.8 .
• Shaft Diameter (mm) – 6.
• Shaft Length (mm) – 13.
• Shaft Type – D-type.
• Motor Weight(gm) – 230.

Product Includes:-

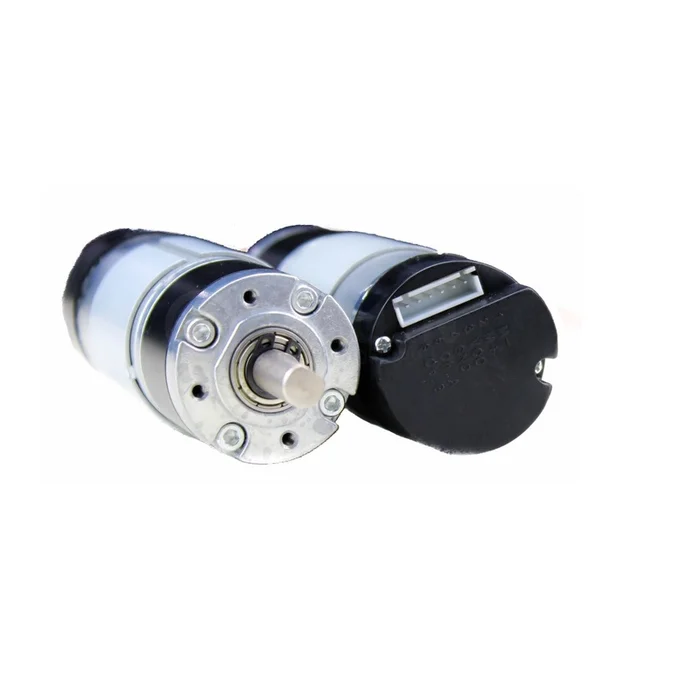

1×500 RPM 12V 28mm Tauren DC Planetary Gear Motor with Encoder 0.5 N-m Torque – TPG28395126000-12KE
