Description

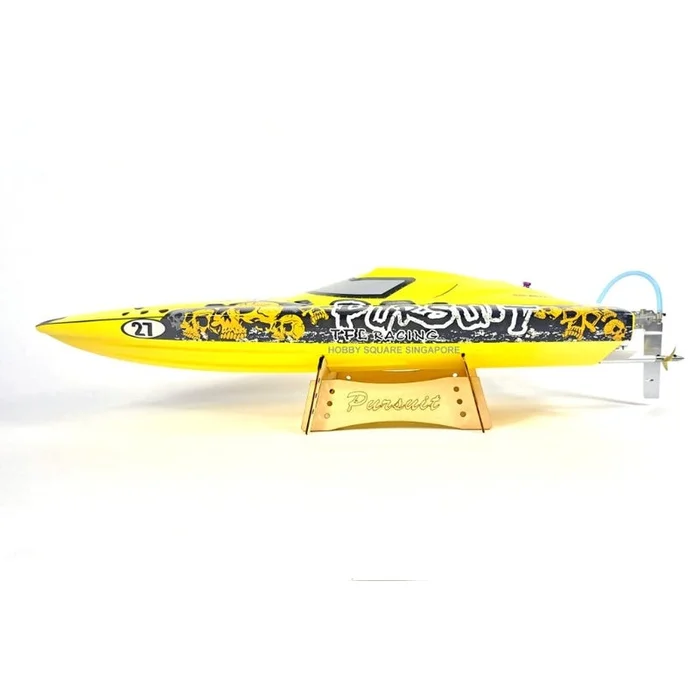

TFL fiberglass Pursuit. This boat comes assembled with all high quality equipment including CNC Aluminium hardware andnew TFL Stinger drive system and Upgraded Power System.

Features

• Fiberglass hull for light weight and high strength.
• Hobbywing SeaKing180ampesc for reliable performance and waterproof.
• TFL SSS 40921650kv Brushless Motor
• TFL Stinger Drivewith adjustable angle
• Metal 42mm copper propeller
• 4.76mm Propeller Shaft
• ARTR (almost ready to run)
• Fiberglass battery tray

Hull Specifications

• Length: 820mm
• Width: 240mm
• Height: 80mm

TFL Hobbywing Seaking 180A V3 Specifications

• Excellent waterproof design (rates as IP 67) allows this ESC to work in water without any extra precautions;
• High quality components have very strong over-current withstanding capabilities;
• Patented Copper Heat Conduction technology and high-efficiency water cooling system can easily dissipate the heat produced in operation under high load;
• The special firmware designed for RC boats can make the acceleration punchier and the sailing more stable;
• The external Programming Port can connect to the LED Program Box for easily setting the parameters of the ESC
• Multiple protections like low-voltage cut-off protection, thermal protection and throttle signal loss protection, make the ESC more reliable

Model / SKU

SeaKing-180A-V3/30302181011

Cont./Peak Current

180A/1080A

Boat Applicable

Boat length < 130cm

Input /

2-6S Lipo

BEC Type / BEC Output

Switch Mode /6V/5A

External Programming Port

Available

Water Cooling Pipe

(Inside / Outside):3.0 / 5.4mm

Input wire

Red-10AWG-200mm*1
Black-10AWG-200mm*1

Output wire

Black-10AWG-150mm*3

Size / Weight

72X48X36.6mm (Include the Water Cooling Pipe)
207g

TFL SSS 4092 1650KV Specifications

• Material: Silicon steel, Magnetic steel
• Maximum Amps: 127A
• Maximum voltage: 33V
• Maximum power: 4200W
• Idle Current: 2.4A
• Diameter:40mm
• Length:92mm
• Shaft diameter:5mm
• Weight: ~500g
• Use for RC Marine Boats

Including

• 1 x TFL fiberglass Pursuit Hull and Hardware (w/o Power System) Or
• 1 x TFL fiberglass Pursuit ARTR (Requires steering servo, radio system and battery)
