Description

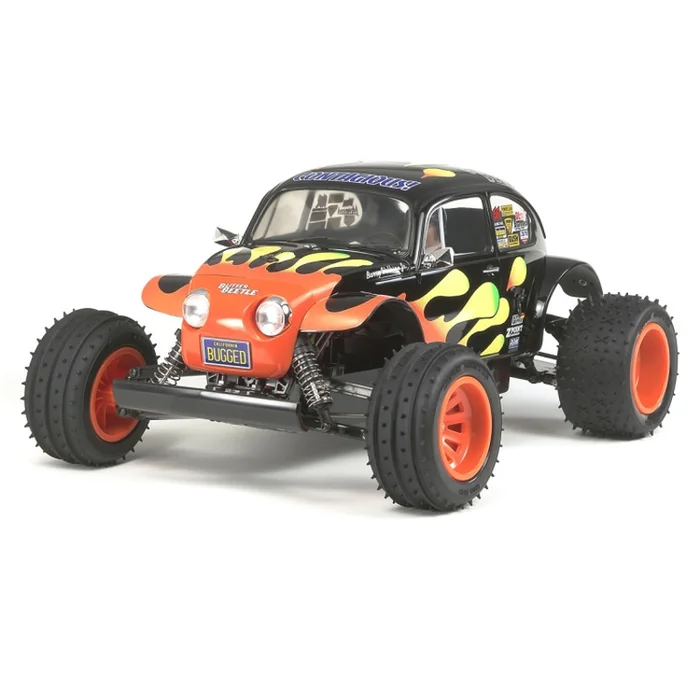

TAMIYA BLITZER BEETLE (2011) NO ESC Kit 1:10 – 58502A

This is the Tamiya 1/10 Electric Blitzer Beetle 2011 Off-Road Kit, a 1/10 scale R/C assembly kit of the Blitzer Beetle, which was inspired by the exciting off-road desert racer designs seen in the United States. This chassis is equipped with 4-wheel double wishbone suspension, CVA shock units, and high-grip off-road tires to offer superb driving performance on rough terrain. The injection-molded body features metal-plated light covers and side mirror parts for greater realism.


2WD Off-Road Chassis
This tough, lightweight ABS bathtub chassis features a rear-mounted motor, rear-wheel drive layout. Fully-enclosed gearbox protects against dirt and debris and is equipped with differential gears to offer smooth cornering. 4-wheel independent double wishbone suspension is equipped with C.V.A. shock units and extremely durable monocoque-type lower arms. The front spiked tires feature three ribs for enhanced stability while the rear tires feature both spikes and an X-shaped tread pattern along the center to ensure high levels of grip.

NOTE:Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.

Features:

• ABS Bathtub Type Chassis Frame
• Injection-Molded Body with Driver Torso Figure
• Rear-Mounted Motor, Rear-Wheel Drive
• 3-Bevel Differential Gears
• F/R Double Wishbone Suspension
• F/R CVA Shock Units
• Type 540 Motor included

Specifications:

Length:394mm

Width:295mm

Height:182mm

Wheelbase:260mm

Tread:248mm (Front), 242mm (Rear)

Tire Width/Diameter:45/98mm (Front), 52/99mm (Rear)

Need running gear?? Get our custom ready-to-run pack here:

Needed to Complete:

• 2 channel radio system
• Brushed ESC
• Steering servo
• Polycarbonate paint for body
• 7.2V – 7.4V Battery w/Tamiya Connector (Must use round type battery pack. Square shaped batteries will not fit battery compartment.)
• Compatible Battery Charger
