Description

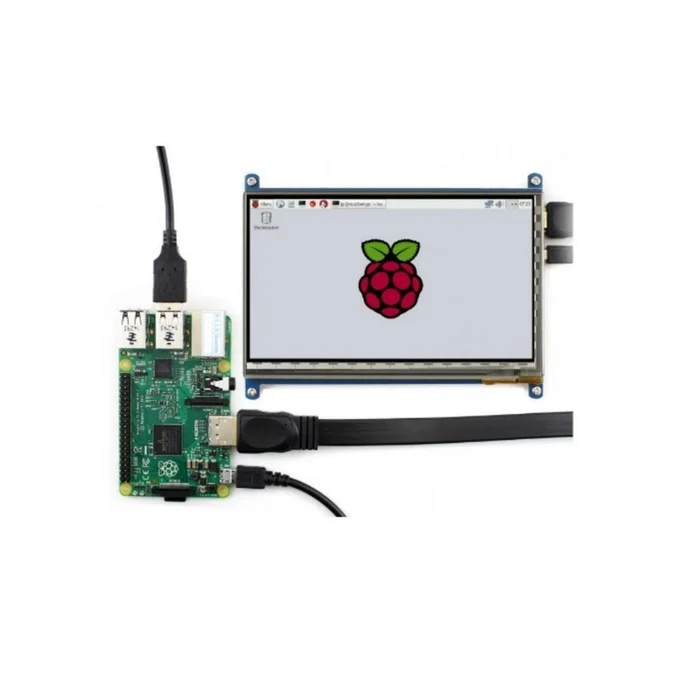

This is a Waveshare 7inch 1024600 HDMI, IPS Capacitive Touch Screen LCD (H) With Various Systems Support. Toughened glass capacitive touch panel, 6H hardness. It supports Raspberry Pi and can also be used as a computer monitor. This Display is Used with Raspberry Pi, supports Raspbian, Ubuntu, WIN 10 IoT, driver free.

---

Features:

1. 7inch IPS screen, 1024600 hardware resolution, configurable by software.
2. Toughened glass capacitive touch panel, 6H hardness.
3. Supports popular mini PC such as Raspberry Pi, BB Black, Banana Pi.
4. Used with Raspberry Pi, supports Raspbian, Ubuntu, WIN 10 IoT, driver free.
5. Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc.
6. It has a 3.5mm audio jack and supports HDMI audio output
7. Supports VGA input
8. High-quality PC case, optional tilt angle: 30/50

---

Useful link:

For more information refer to thetutorial.

---

Specification:-

Display Type

LCD

Touch Type

Capacitive

Touch Point

5

Display Resolution

1024600

View angle

170

Length (mm):

165

Width (mm):

105

Height (mm):

13

Weight (g):

214

Shipping Weight 0.15 kg Shipping Dimensions 15 8 4 cm

Package Includes:

1 x Waveshare 7inch 1024600 HDMI, IPS Capacitive Touch Screen LCD (H) With Various Systems Support
