Description

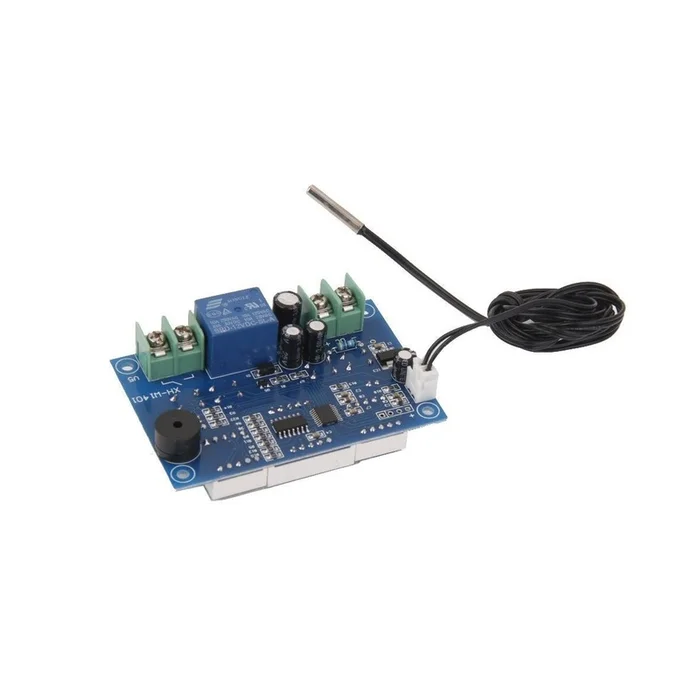

XH-W1401 DC12V Digital Thermostat Temperature Controller With NTC Sensor & LED Display is a dual temperature controlled thermostat. This module can control both heater and cooler and you can set it according to your application.

An NTC temperature sensor is provided for monitoring temperature from a range of -9 to 99. A relay is provided for AC or DC load control the relay can control up to 10 amperes. The module input voltage (supply voltage) is 12 volts DC.

Note: This Product is available in three different variants (XH-W1401, HW-559, and HCW M141) with the same working we will ship it randomly.

Features:

1. Imported High-Speed single-chip microcomputer.
2. Three Display output status indicator.
3. Automatically judge heating and cooling according to set temperature.
4. Setting range is wide -9C~99C
5. Used in various temperature control, water temperature control, incubators, etc.

Specification:

Model

XH-W1401

Thermostat Range

-9 to 99

Input Supply voltage (VDC)

12

Refresh Rate

0.5 Sec

Length (mm):

78

Width (mm):

51

Weight (kg):

0.040

Shipping Weight 0.05 kg Shipping Dimensions 8 6 3 cm

Package Includes:

1 x XH-W1401 12V Digital Led Thermostat Module Temperature Controller With Display
