Description

The YAKO 2phase Stepper Motor Driver YKD2608E is a popular choice for driving 57 or 86 stepper motors in CNC routers and engraving machines. It’s known for its smooth operation, quiet performance, and excellent torque output.

Typical Application:

Mainly used in engraving machines, laser equipment, labeling machines, electronic equipment, advertising equipment, packaging equipment

Product Diagram

Microstep Setting

Current Setting

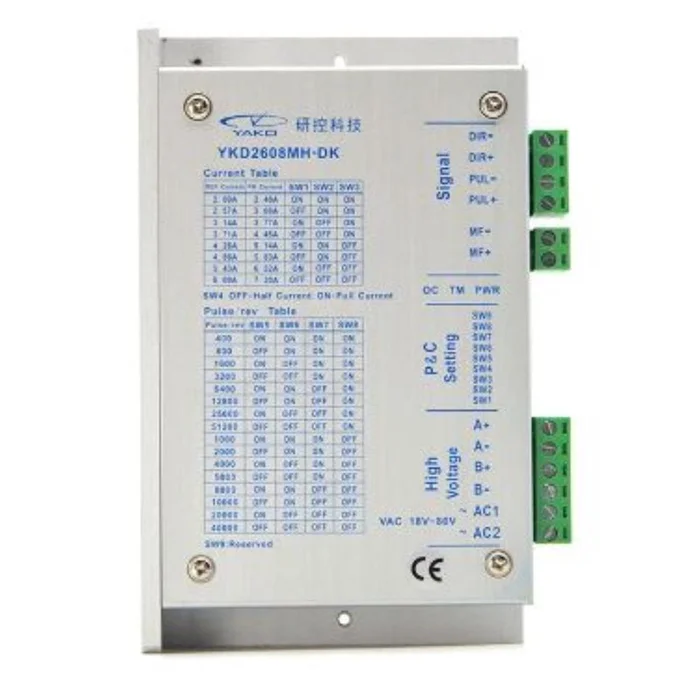

Terminal Assignment

Specification:-

• 32-bit DSP control, low noise and superior vibration performance
  16 constant torque microstep setting, up to 256 microsteps

• Smooth and accurate current control, effectively reduce motor heating

• The highest pulse response frequency is 400KHz

• When the pulse stops over 200ms, the motor current is halved

• Excellent smoothness in low frequency microsteps

• Optically isolated differential signal input, strong anti-interference ability

• Drive current is adjustable below 6.0A

• Voltage input range: AC18~80V

• With over voltage, under voltage etc. fault protection

• Small size, volume 151*94*54 (mm), weight 0.65kg

• Suitable for 57-86mm(NEMA23-34) 2 phase open-loop stepper motors.

• Compared with the standard version, enhanced version adds the
  following 6 functions: Pulse smoothing, MF function selection, pulse
  filter, polarity selection, pulse mode, self-test pulse 5HKz

Product Includes:-

1x 2phase Stepper Motor Driver YKD2608MC YKD2608E YKD2608MH Match with 57 86 Serial use For CNC Router Engraving Machine
