Description

YKD2822M is high performance digital step drive based on YAKOs new 32-bit DSP technology. Its designed for various models of two phase 86~130mm (NEMA 34~50) hybrid stepper motors which current are below 8A.

With servo-similar control circuit and superior software algorithm, YKD2822M has superior performance in smoothness, noise and vibration. Smooth and accurate current control technology greatly reduces motor heat.

Product Diagram

Microstep Setting

Current Setting

Terminal Assignment

Specification:-

• 32 bit DSP control technology,low noise/vibration withexcellent stabilityand low cost
• 16constant–torquemicrostep settings,125 microsteps the highes
• Smooth and accurate current control, effectively reduce motor heats
• 400Kpps pulse response frequency
• Afterstep pulse stops for500ms,outputcurrent automaticallychange
• Excellent smoothnessin low frequency high microstep applications
• Photoelectric isolated signal input/output, high anti-interference ability
• Drive current adjustable(under 8A)
• Input voltage range:AC110~22
• Faultprotection: over current, over voltage, low voltage protection, etc.
• Small size:200*148*71mm,1.5kg

Package Include:-

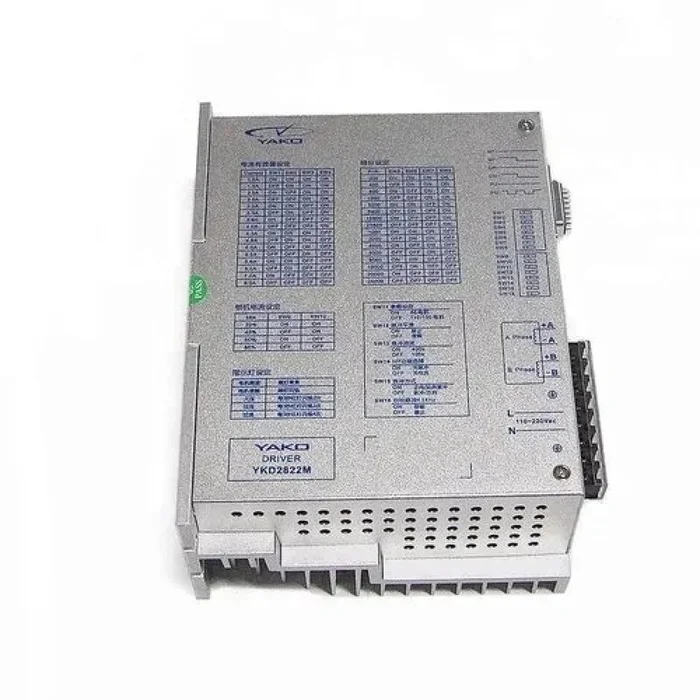

1xYAKO YKD2822M DSP digital Microstepper Stepper driver high performance stepper driver AC 110-220V 8A
